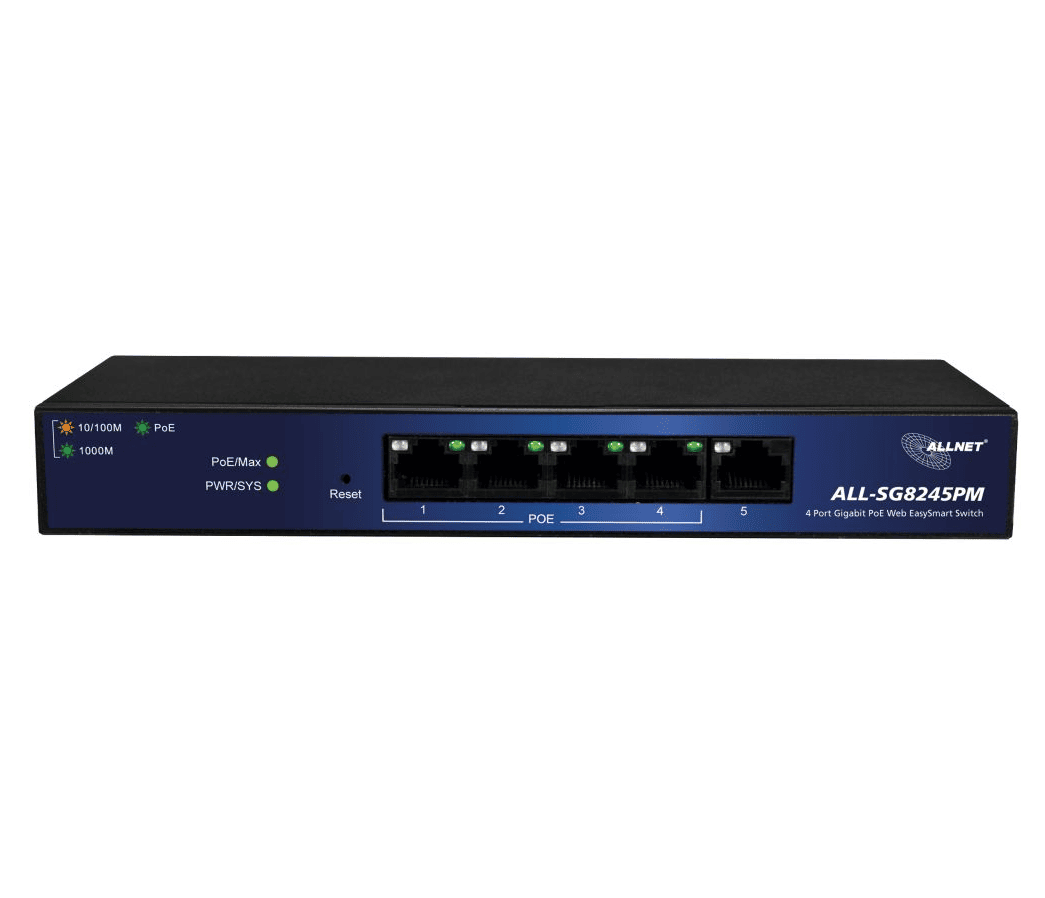

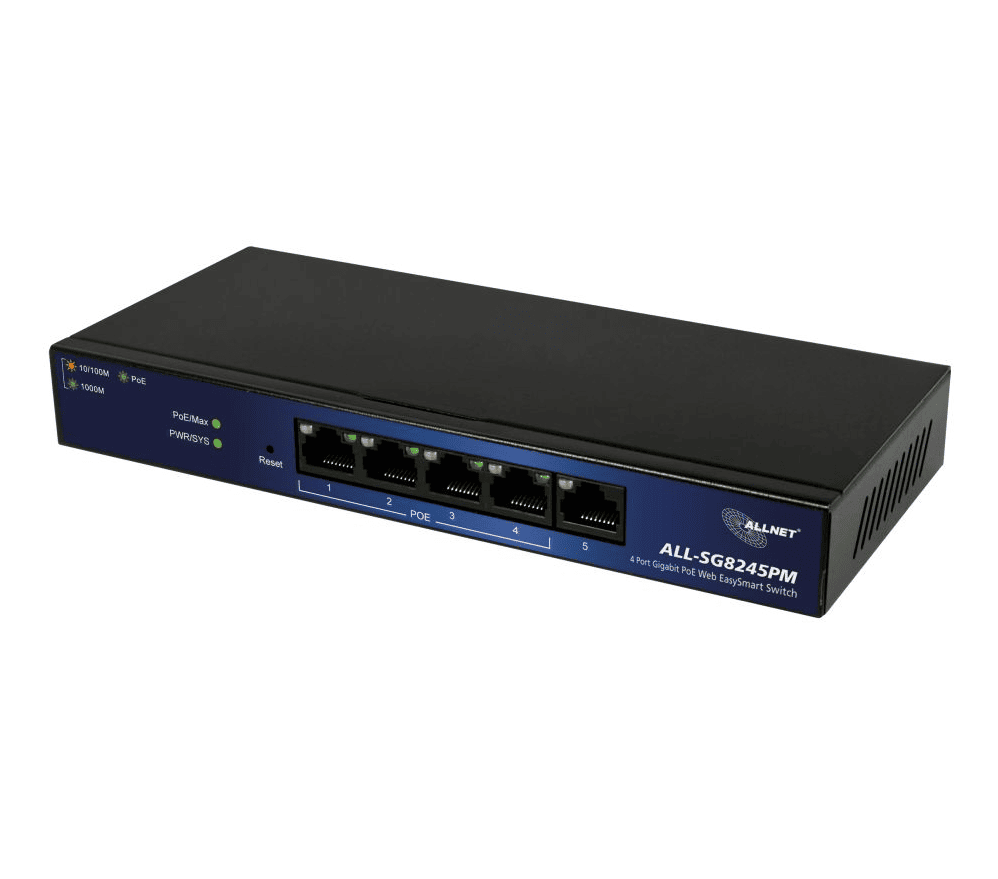

ALLNET ALL-SG8245PM hallittava 5-porttinen Gigabit-kytkin (4xPoE)

125,00  (sis. alv24%)

ALLNET ALL-SG8245PM on 5-porttinen tuulettimeton kompakti hallittava Gigabit-kytkin, jossa 4 portissa on PoE syöttö.

Laatua edullisesti!

Takuu 2 vuotta (24kk)

1 kpl varastossa

Tuotetunnus (SKU): 138516 Osastot: , ,


5-port 10/100/1000Mbit/s Easy webmanaged Gigabit Ethernet Switch with 4x PoE Outputs (802.3af/at)


  • 5-port 10/100/1000Mbit/s Gigabit Ethernet Switch support 4x PoE IEEE802.3af/at)
  • (PoE Budget ca. 60W for max. 4 Devices, support max. 30 per Port IEEE802.3at)
  • Easy Smart-Managed
  • Fanless-Design

The new ALLNET ALL-SG8245PM switch is a solid foundation for a networked workplace. With a total of 5 backwards-compatible gigabit ports, computers, printers, access points, etc. Can be integrated in your network reliably. The ALL-SG8245PM can also supply power to PoE-enabled devices via its 4 PoE ports (IEEE802.3af), so they do not need an additional power cable. To ensure the for a workplace very important silent operation, the ALL-SG8245PM is equipped with a fanless design. For optimal usage comfort it is “smart managed”. That means it is among other things configurable for VLAN and QoS.

Technical Details:

Switch working: Layer 2-Switch, Web easy smart managed
Switch-Typ: standalone
Standards: IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3az EEE
IEEE802.3ad Link Aggregation
IEEE802.1p-based QoS
Switching-Ports: 5x RJ45 10/100/1000BaseT(X)
4x PoE IEEE802.3at max. 30W per Port
Special: 4x PSE Port for PoE Devices
Uplink: yes
Full Duplex Mode: yes
Buffer Memory: 1Mbits
Jumbo Frames: 9216byte
 MAC adress table: 2K
Filtering/Forwarding: Store-and-Forward
LED Define: Power/System: Green LED

  • Off: power off or fail
  • On: power on
  • Blinking: system booting up

PoE Alert: Green LED

  • Off: No over PoE max power budget (50W)
  • On: Over PoE max power budget (50W)

RJ 45 Port:
LINK/ACT: bio-color LED

  • Off: port disconnected or link fail
  • Green on: 1000Mbps connected
  • Amber on: 10/100Mbps connected
  • Blinking: sending or receiving data


  • Off: PoE power output off
  • Green on: PoE power output on
Layer2 Basic:
Port: Auto Negotiation of speed and duplex modes
Jumbo frame support
Mirror: Port mirroring both on ingress and egress traffic
Port-based VLAN
LACP: Link Aggregation = IEEE802.3ad
Multicast: Blocking of unknown multicast traffic
Qos: IEEE802.1p-based QoS
Port-based QoS
Scheduling Method = WFQ or SP
IGMP Snooping: Support IGMPv1 Snooping RFC 1122, RFC4541
Support IGMPv2 Snooping RFC 2236, RFC4541
Support IGMPv3 Snooping(Partial) RFC 3376
Security: STP / Self Loop Support
Broadcast Storm Control Support
Management: User Interface Web-based Management
User Account System password protection
PoE: PoE power output On/Off management
Power Input:
Power-Input: AC to DC external power adapter
Input: 100~240V AC
Output: 55VDC / 1,3A
Housing: Metall/ Desktop
PoE Output power capacity: Maximum output :30W per each port
1. Compliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or
2. Automatically discover the connection of PD device and immediately sends power to it
3. Auto disable port if the port current is over 700mA or short happens
4. Priority default setting is lower port NO. has high priority
5. The maximum power used by power devices is defined by the following classification.
When Port works in Auto Mode, the output port power limit will be associated with PD
classification Value.
6. Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out
power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable
Dimension: 193 x 84 x 26mm
Environment: Operating Temperature: 0 ~ 50 °C
Operating Humidity: 10% ~ 90% (non condensing)
Storage Temperature: -40 ~ 70 °C
Operating Humidity: 5% ~ 90% (con condensing)
Marks: CE FCC EMI class B, ROHS


Paino 689 g (gramma)
Mitat 200 × 300 × 50 mm (millimetri)
