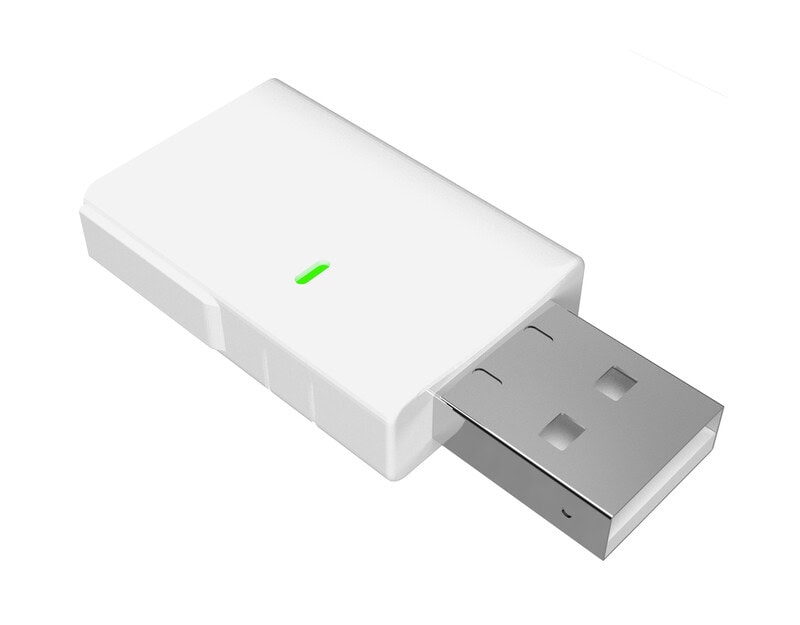

Shelly BLU Gateway on pienikokoinen USB-sovitin, joka toimii yhdyskäytävänä Shelly BLU -laitteiden ja Shelly Cloudin välillä.
Jos haluat laajentaa olemassa olevaa Shelly Gen-1 -laitteiden älykästä ekosysteemiä, joissa ei ole Bluetooth-yhteyttä, Shelly BLU -antureilla, Shelly BLU GW voi toimia yhdyskäytävänä Shelly Cloudiin ja siten olemassa oleviin Gen-1-laitteisiin.
- USB Type-A plug
- Scripting for local control
- Supports MQTT, WebSocket or any other compatible home automation system, like Home Assistant
- Wi-Fi range extender
- Can scan the Bluetooth network and find all other Bluetooth devices; can trigger actions on third-party devices using scripting
Specifications
| Type | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 45x20x8 mm / 1.77×0.79×0.21 in |
| Weight: | 5 g / 0.18 oz |
| Material: | Plastic |
| Color: | White |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Electrical | |
| Power supply: | 5 VDC (from USB Type-A port) |
| Power consumption: | < 1 W |
| Radio | |
| RF band: | 2400 – 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 20 m / 66 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP32 |
| Flash: | 4 MB |
| Firmware capabilities | |
| Scripting: | Yes |
| MQTT: | Yes |
| CoAP: | No |
