Kuvaus

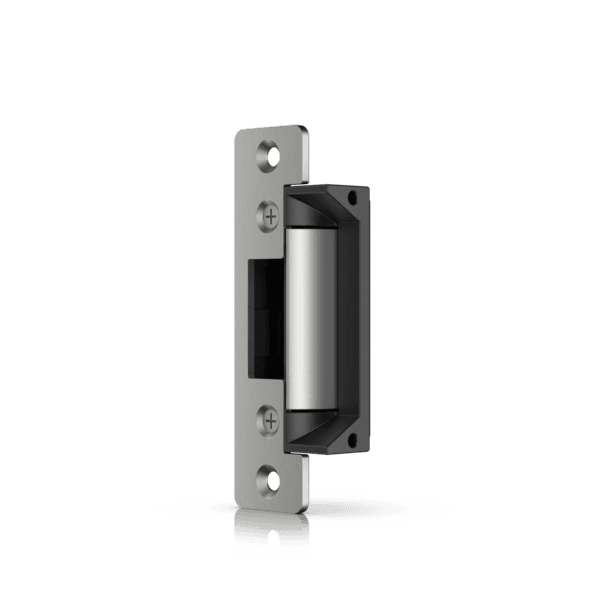

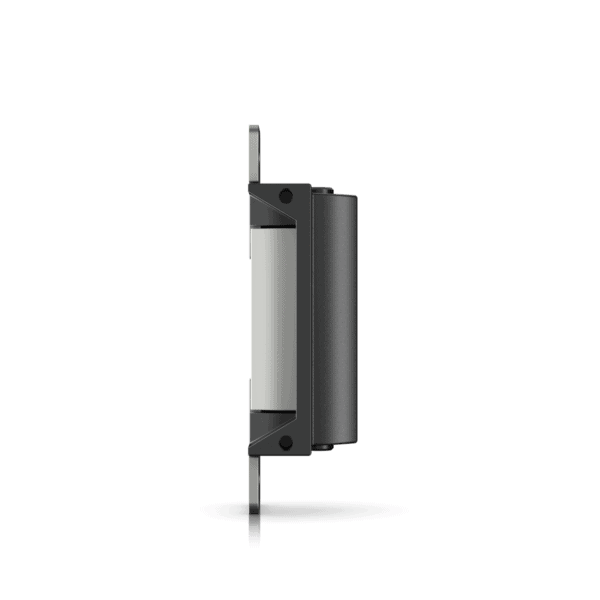

Fail-secure electric strike lock that connects to a UniFi Access Hub (UA Hub).
Holds up to 1,200 kg (2,645 lb)
Can be installed on an aluminum, steel, or wooden door frame
ANSI-compliant design
Technical Specifications
Mechanical
Dimensions

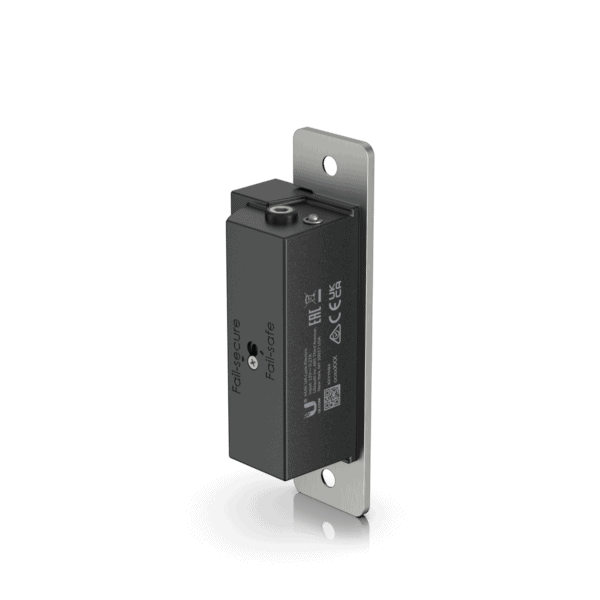

Lock body: 80 x 40 x 35 mm (3.15 x 1.57 x 1.38″)

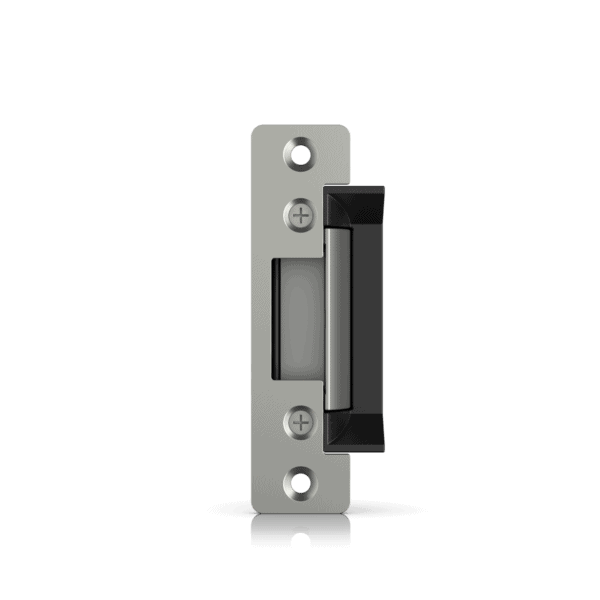

Short front plate: 124 x 32 x 3 mm (4.88 x 1.26 x 0.12″)

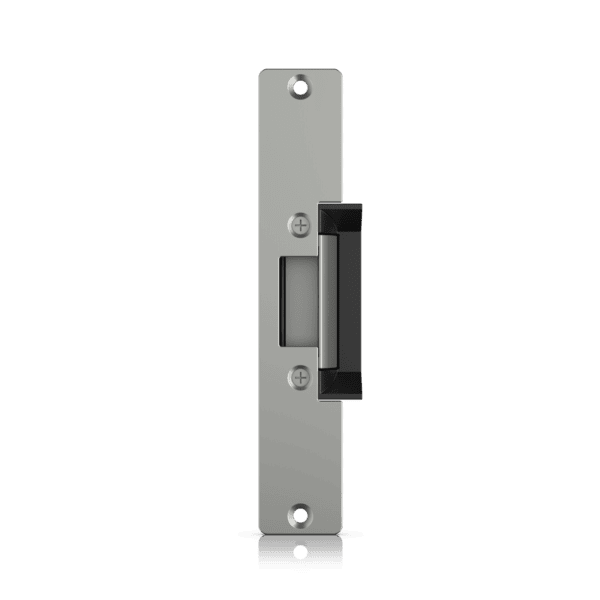

Long front plate: 202 x 36 x 3 mm (7.95 x 1.42 x 0.12″)
Weight
Lock body: 185 g (6.5 oz)
Short front plate: 50 g (1.8 oz)
Long front plate: 130 g (4.6 oz)
Enclosure materials
Lock body: zinc alloy
Front plate/latches: stainless steel
Hardware
Voltage
12VDC
Current power
400mA ±10%
Wiring connection
Connect the two screw terminal separately to powered lock relay on UA-Hub: NO, COM
Lock type
Fail secure lock
Single door
Lock holding force
1,200 kg (2,645 lb)
Suitability
Wooden
Steel
Aluminum
Screw terminal
+ and –
Operating temperature
-10 to 45° C (1
