Kuvaus

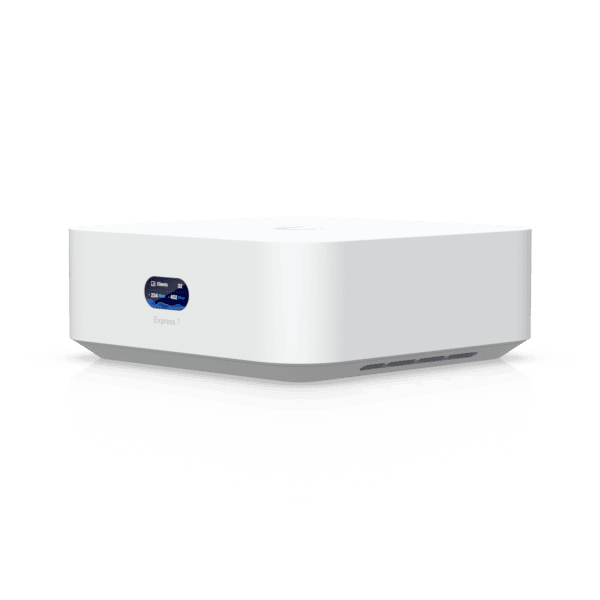

Mesh-scalable, super-compact 10G cloud gateway with integrated WiFi 7.
Highlights:
Integrated 6-stream WiFi 7 with 6 GHz support
Optional use as a wired or mesh Layer 2 UniFi AP to extend coverage
140 m² (1,500 ft²) coverage
Manages over 30 UniFi devices and over 300 clients

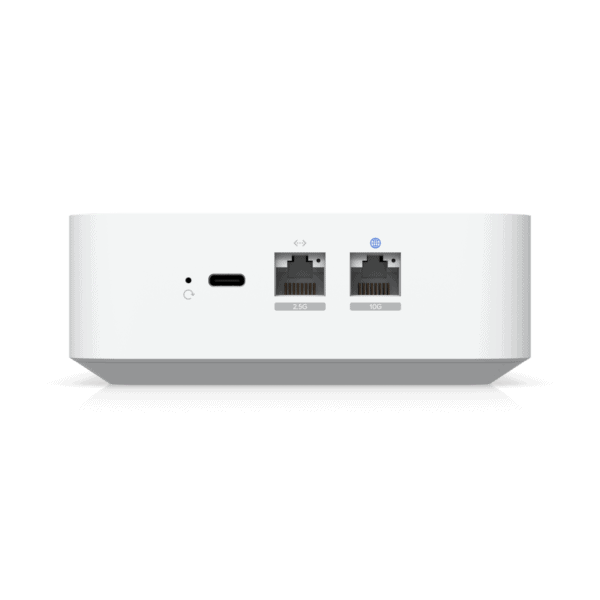

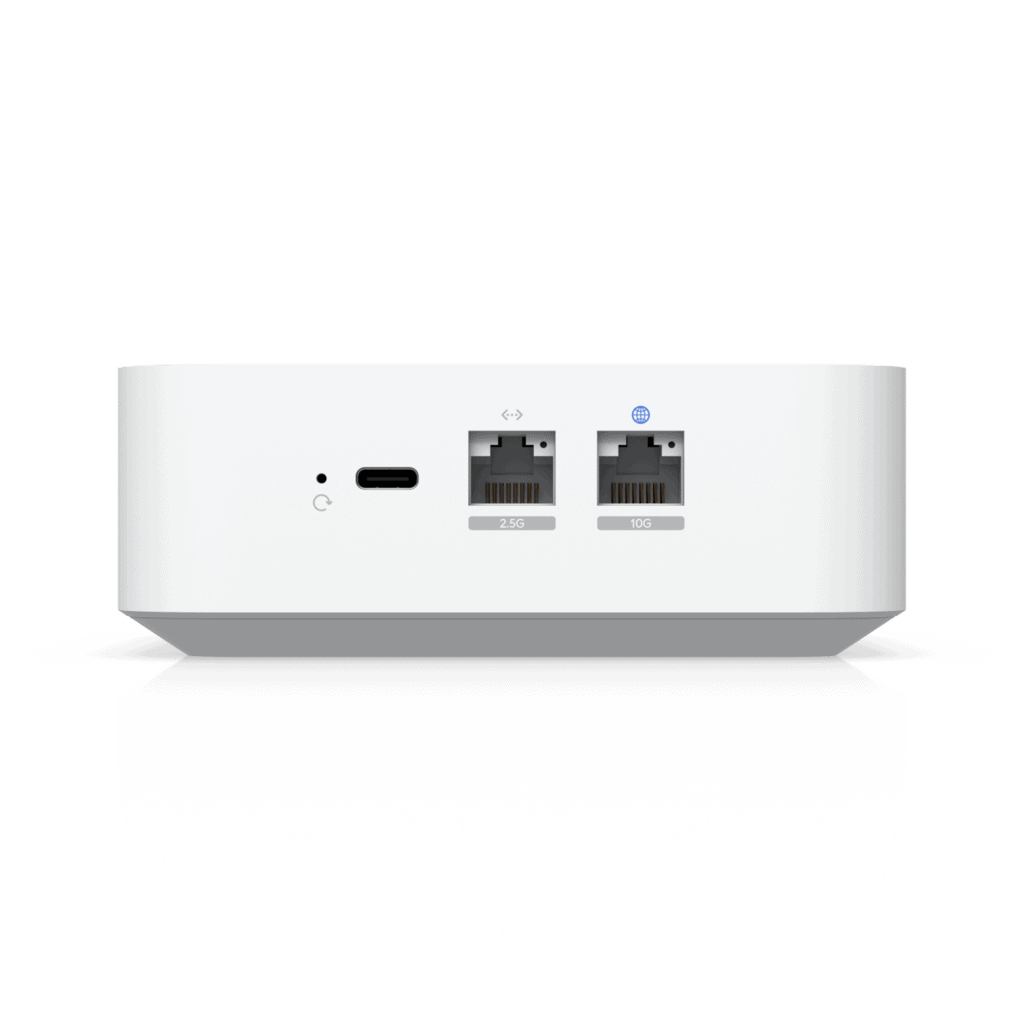

(1) 10 GbE RJ45 WAN port
(1) 2.5 GbE RJ45 LAN port to expand the network
Technical data:
Mechanical
Dimensions
117 x 117 x 42.5 mm (4.6 x 4.6 x 1.7 inches)
Weight
422 g (14.9 oz)
Favourite material
Polycarbonate
Hardware
Management interface
Ethernet
Bluetooth
Network interface
LAN:
(1) 2.5 GbE RJ45 port
WAN:
(1) 10 GbE RJ45 port
IDS/IPS throughput
2.3 Gbit/s
Power method
USB type C (5 V DC/5 A)
Max. Power consumption
22W
Max. Transmission power
2.4 GHz
5 GHz
6 GHz
23 dBm
26 dBm
23 dBm
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
