Kuvaus
Compact, multi-WAN UniFi gateway with full 2.5 GbE support for high-performance networking at small-to-medium sites.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
Up to 1.5 Gbps routing with IDS/IPS

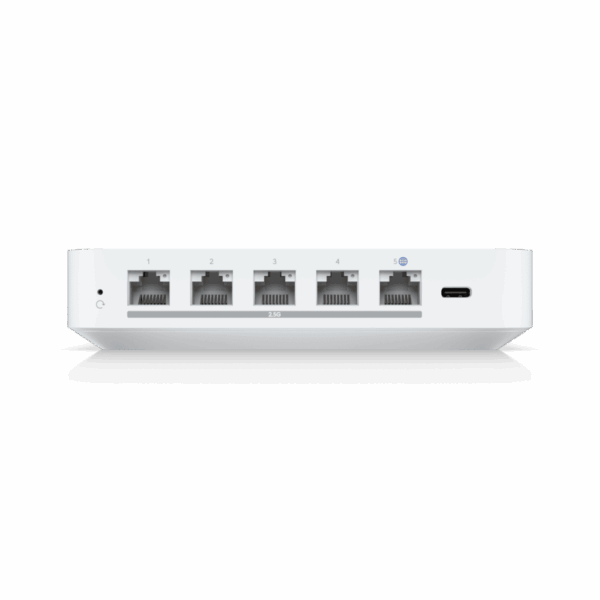

(1) 2.5 GbE WAN port
(4) 2.5 GbE LAN ports, including (1) remappable to WAN
USB-C powered (adapter included)
Managed with UniFi Network 8.1.113 and later
Technical Specifications
Mechanical
Dimensions
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″)
Weight
520 g (1.1 lb)
Enclosure material
Polycarbonate
Resistance
IK04
Hardware
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
Memory information
2 GB DDR4
Management interface
Ethernet
Bluetooth
Networking interface
LAN:
(4) 2.5 GbE RJ45 ports
WAN:
(1) 2.5 GbE RJ45 port
Power method
USB type C (5V/3A)
Supported voltage range
100–240V
Max. power consumption
9.6W
LED
Ethernet
White: link/activity
Button
(1) Factory reset
Ambient
