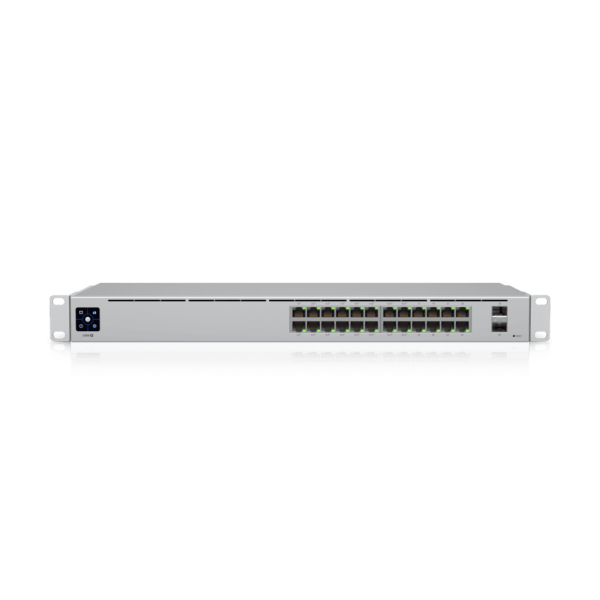

Ubiquiti Unifi Switch / 24 Port / 16x POE+/ 8 Rj45 Gigabit / 120W / 2x 1G SFP / USW-24-POE

A 24-port, Layer 2 PoE switch with a fanless cooling system.

(16) GbE PoE+, (8) GbE ports

(2) 1G SFP ports

95W total PoE availability

Fanless, silent cooling

Technical Specifications

Mechanical
Dimensions
442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7″)
Weight
Without mounting brackets: 3 kg (6.6 lb)
With mounting brackets: 3.1 kg (6.8 lb)
Enclosure material
SGCC steel
Hardware
Management interface
Ethernet In-Band
Networking interface
(24) GbE RJ45 ports
(2) 1G SFP ports
PoE interface
(16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput
26 Gbps
Switching capacity
52 Gbps
Forwarding rate
38.69 Mpps
Power method
Universal input, 100—240V AC, 50/60 Hz
Power supply
AC/DC, internal, 120W
Supported voltage range
100—240V AC
Max. power consumption
25W (Excluding PoE output)
Total available PoE
95W
Max. PoE wattage per port by PSE
PoE+: 32W
Voltage range PoE mode
PoE: 44—57V
