Kuvaus

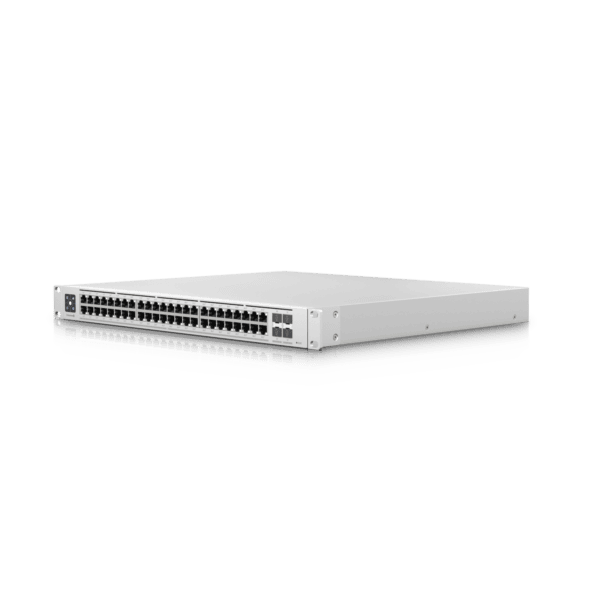

A 48-port, Layer 3 switch with 2.5 GbE PoE+ output.
(48) 2.5 GbE PoE+ ports
(4) 10G SFP+ ports
720W total PoE availability
DC power backup-ready
Layer 3 switching
Technical Specifications
Mechanical
Dimensions
442 x 44 x 400 mm (17.4 x 1.7 x 15.7″)
Weight
Without mounting brackets: 6.2 kg (13.67 lb)
With mounting brackets: 6.3 kg (13.89 lb)
Enclosure material
SGCC steel
Hardware
Management interface
Ethernet In-Band
Networking interface
(48) 2.5 GbE RJ45 ports
(4) 1/10G SFP+ ports
PoE interface
(48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput
160 Gbps
Switching capacity
320 Gbps
Forwarding rate
238.095 Mpps
Power method
(1) Universal AC input, 100—240V AC, 10A Max, 50/60 Hz
(1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A
Power supply
AC/DC, internal, 100—240V, 10A Max.
Supported voltage range
100—240V AC
Max. power consumption
150W (Excluding PoE output)
Total availabl
