Kuvaus

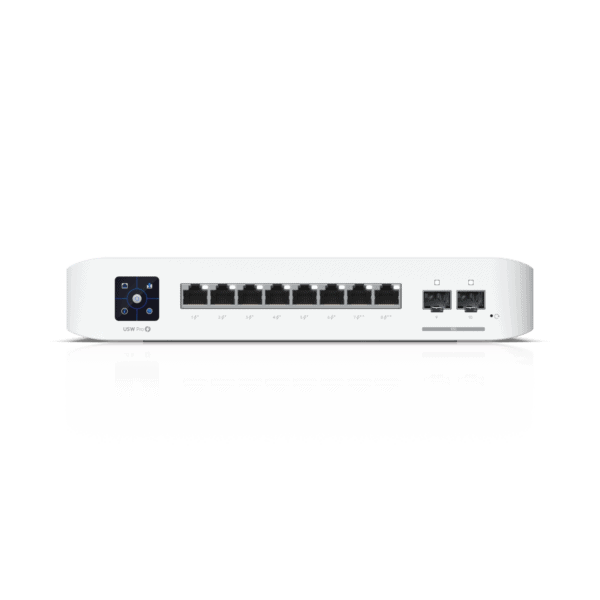

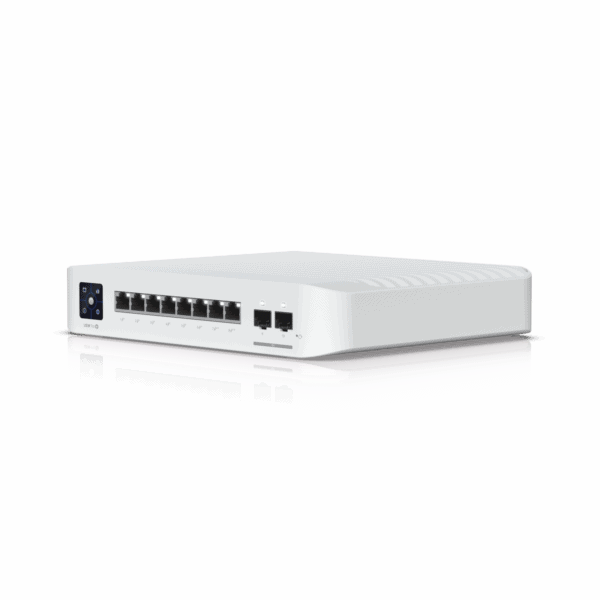

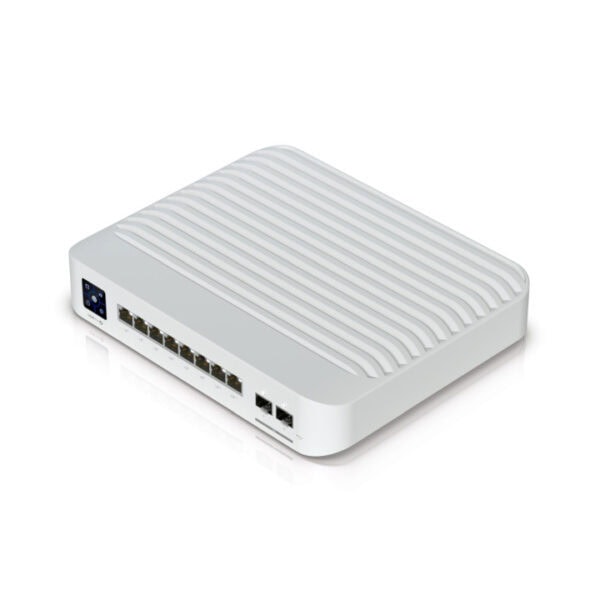

An 8-port, Layer 3 switch with PoE+ and PoE++ output.
(6) GbE PoE+ ports
(2) GbE PoE++ ports
(2) 10G SFP+ ports
120W total PoE availability
Note: Managed with UniFi Network Application version 7.5.176 and later.
Technical Specifications
Mechanical
Dimensions
200 x 248 x 44 mm (7.9 x 9.8 x 1.7″)
Weight
2.1 kg (4.6 lb)
Enclosure materials
Plastic, metal
Mount material
Plastic
Hardware
Management interface
Ethernet In-Band
Networking interface
(8) GbE RJ45 ports
(2) 10 Gbps SFP+ ports
PoE interface
(6) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 😎
Total non-blocking throughput
28 Gbps
Switching capacity
56 Gbps
Power method
Universal input, 100—240V AC, max. 2A
Power supply
AC/DC, internal
Supported voltage range
100—240V AC
Max. power consumption
30W (Excluding PoE output)
Total available PoE
120W
Max. PoE wattage per port by PSE
PoE: 15W
PoE
