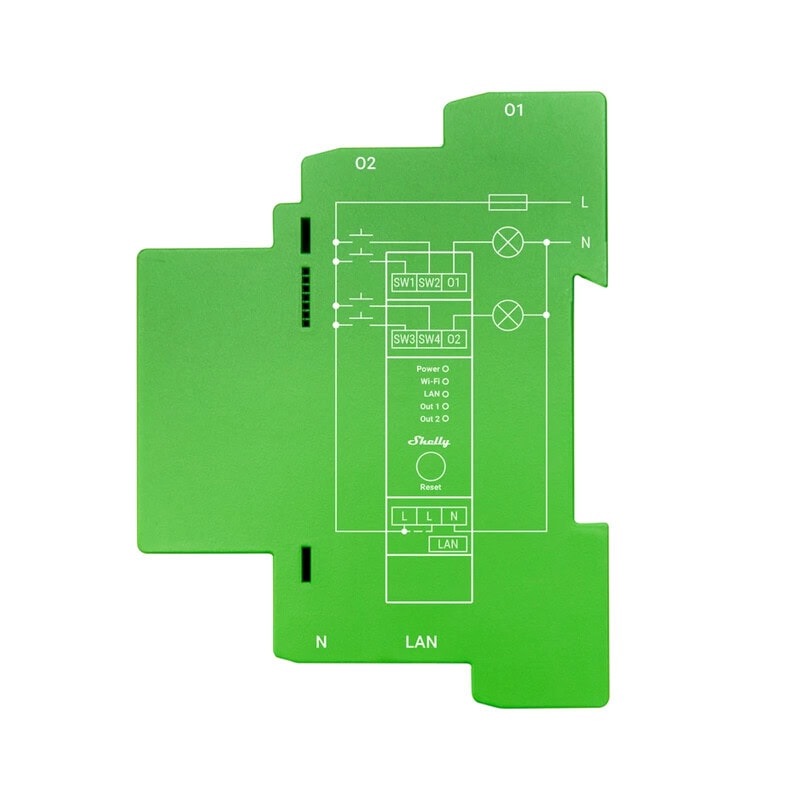

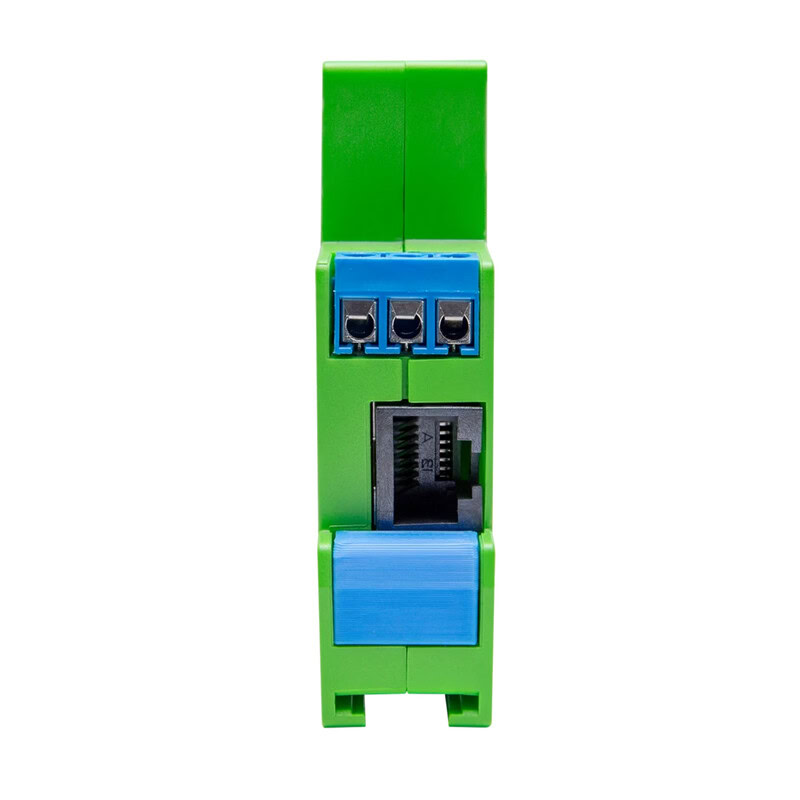

Shelly Pro Dimmer 2PM

80,00  (sis. alv24%)

Professional DIN rail smart dimmer with power monitoring

Suomennetut tekstit tulossa myöhemmin, kuten tuotekin. Ennakkotilaus!

  • LAN, Wi-Fi, and Bluetooth connection
  • Power metering on each channel and free storage data
  • Night mode for lower brightness during night hours
  • Automatic calibration of dimming type and load
  • Multiple dimming types for different types of bulbs- leading & trailing edge
  • Switch/button input mode
  • Use with your existing switches (one/dual button control)
  • Adjustable min/max brightness
  • Adjustable button fade rate and transition time
  • No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
  • Wi-Fi Range Extender & BLE Gateway
  • Extremely fast processor for immediate reaction – ESP32
  • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates



Omassa varastossa

Shelly Pro Dimmer 2PM

80,00  (sis. alv24%)

Hintahistoria
Tuotetunnus (SKU): 224187 Osastot: , , Avainsanat tuotteelle ,
Specifications
Supported load types
HV LED lamps (Dimmable) 200 W
Dimmable electronic transformers 180 W
HV LED lamps (Non Dimmable) 110 W (On/Off mode)
Incandescent Light bulbs 200 W
HV halogen lamp 200 W
Wound transformer 200 VA
CFL 50 W
PHYSICAL
Dimensions (LxWxH) 94x19x69 mm / 3.70×0.75×2.71 in
Weight 75 g / 2.7 oz
Ambient temperature -20 °C to 40 °C / -4 °F to 104 °F
Humidity 30 % to 70 % RH
Max. altitude 2000 m / 6562 ft
Screw terminals max torque 0.4 Nm / 3.5 lbin
Conductor cross section 0,5 to 2,5 mm2 / 20 to 14 AWG (green connectors)0,5 to 1,5 mm2 / 20 to 16 AWG (blue connector) (solid, strand-ed, and bootlace ferrules)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in (green connectors) 5 to 6 mm / 0.20 to 0.24 in (blue connector)
Power supply 110-240 V~ 50/60 Hz
Power consumption < 2 W
External protection max. 10 A, tripping characteristic B or C,
6 kA interrupting rating, energy limiting class 3
Max. output power 200 W
Dimming type Leading edge, Trailing edge
Supported loads Incandescent
Dimmable LED and CFL – Dimmable electronic transformers
RF band 2400 – 2495 MHz
Max. RF power < 20 dBm
Wi-Fi protocol 802.11 b/g/n
Wi-Fi operational range (depending on local conditions) up to 50 m / 160 ft outdoors up to 30 m / 100 ft indoors
Bluetooth protocol 4.2
Bluetooth operational range (depending on local conditions) up to 30 m / 100 ft outdoors up to 10 m / 33 ft indoors
CPU ESP32-D0WDQ6
Flash 8 MB
Schedules 20
Webhooks (URL actions) 20 with 5 URLs per hook
Scripting Yes
MQTT Yes
Paino 80 g (gramma)
